| Prod Model: |
QN16-B2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Nickel Plated Brass/Stainless Steel |
| Operation Type: |
Momentary/Latching |
| Plated Color: |
Red Blue Green Black White Yellow Orange |
| Manufactury: |
Yes |
| Custom Made: |
Yes |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
Normal Open or Normal Close |
| Contact Type: |
1no 1nc/2no 2nc |
| Brand: |
Qian Nian |
| Certification: |
CQC TUV Reach RoHS |
Product Description

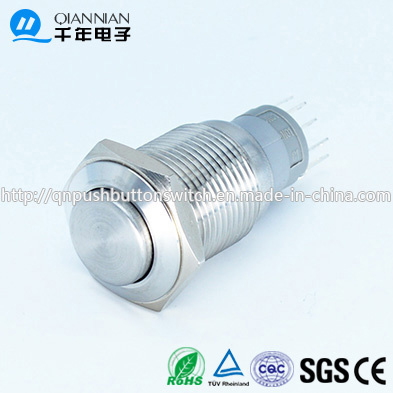

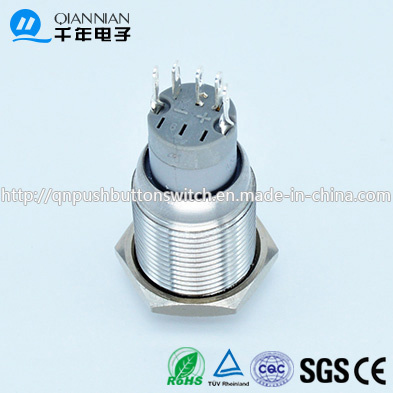

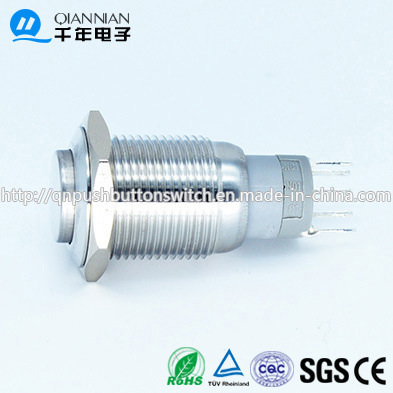

title:QN16-B2 16mm Momentary|Latching Elevated Head Pin terminal Waterproof metal push button switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
| Product brand | QIANNIAN |
| Product name | Button switch |
| Product model | QN16-B2 |
| Product information | Mounting hole | 16mm |
| Operation types | Momentary|Latching |
| Head shape | Elevated Head, Pin terminal, |
| Enclosure material | Nickel plated brass/Stainless Steel |
| Degree of protection | IP67 IK08 |
| Contact parameters | Switch rating | 3A/250VAC |
| Contact configuration | 1NO1NC|2NO2NC |
| Contact | Silver alloy,Pin terminal |
| Other parameters | Mechanical life | 50,000cyles |
| Electrical life | 50,000cyles |
|
| Terminal Type | Pin Terminal(1.8X0.4) |
| Contact resistance | ≤50mΩ |
| Insylation resistance | ≥1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~+55ºC |
| Panel thickness | 1~15mm |
| nut torque | 5~14Nm |
| Opration pressure | About3~5N |
| Operation stroke | About2.8mm |
| Base | PBT |
| Packages | 50PCS/BOX |
| Website | http://qnpushbuttonswitch.en.made-in-china.com |
| Official website | http://www.qnele.com |
Yueqing Qian Nian Electronic Co.,Ltd was founded in 2001,a technology company which is
specialized in designing and manufacturing varies types of push button switch,our company is committed
to well-known brands of companies both at home and abroad to provide first-class products and enterprises
supporting services .Company currently employs more than 160 people ,including R&D personnel and mold
production staff more than 30 people.Leading products are :Metal waterproof push button switch , metal
waterproof pilot lamp ,anti-blast switch ,and accessories.Our product are widely used in various types of
console, control box(cabinet),distribution box (cabinet),instrumentation box(cabinet),electrical apparatus,
and other industrial automation device etc.
1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, Paypal, Western Union and Escrow
5.Most product not have MOQ,orders for just one piece are welcome
6.Actual drawing,picture and part No. will assist to get a competitive price soon
7.The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
